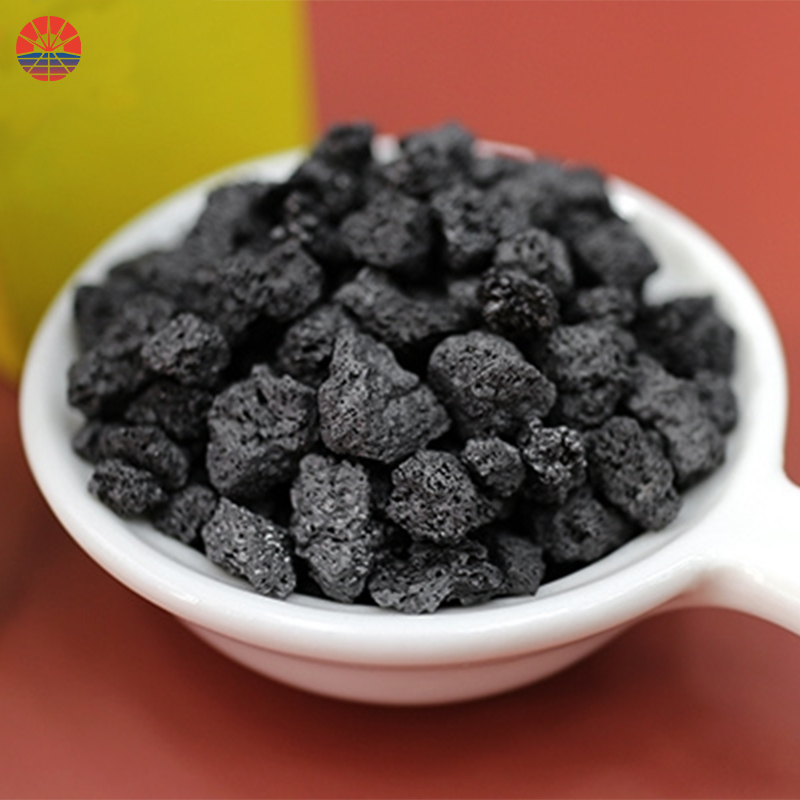

Graphite Petroleum Coke
Graphitized petroleum coke (GPC) is a form of carbon material produced from the high temperature treatment of petroleum coke.
High Carbon Content: The carbon content is usually above 98%, which makes it a desirable material for carbon and graphite production.
Graphitization Process: Heating at extremely high temperatures (above 2500°C) in the presence of a catalyst.,this process transforms the amorphous carbon in the coke into a crystalline structure, resembling graphite.
Low Impurities: Low levels of impurities such as sulfur, nitrogen, and volatile matter which are critical, such as in the manufacturing of high-quality graphite electrodes.
Excellent Conductivity
Thermal Stability
What is the application of graphitized petroleum coke
Graphitized petroleum coke (GPC) finds application in various industries due to its unique properties. Here are some common uses:
Steel Production: Graphitized petroleum coke is widely used as a carbon additive in the production of steel and other alloys. It serves as a recarburizer in the steelmaking process, helping adjust the carbon content of the molten steel. This is crucial for achieving the desired mechanical properties in the final steel product.
Graphite Electrode Production: One of the primary applications of GPC is in the production of graphite electrodes. Graphite electrodes are essential components in electric arc furnaces used for melting and refining steel. GPC, with its high carbon content and conductivity, is a key raw material in the manufacture of these electrodes.
Foundry Industry: Graphitized petroleum coke is used in the foundry industry as a carbon additive in the production of cast iron and other metal castings. It helps improve the carbon content and enhances the overall properties of the casting material.
Refractories: The thermal stability and high carbon content of GPC make it suitable for use in the production of refractories. It can be incorporated into refractory materials to enhance their properties, particularly in applications where resistance to high temperatures is crucial.
Chemical Industry: Graphitized petroleum coke is used in various chemical processes where carbon with specific characteristics is required. It can be employed as a raw material or as an additive in the production of certain
chemicals and compounds.
Carbon Products Manufacturing: Graphitized petroleum coke serves as a valuable raw material for the production of various carbon products such as carbon brushes, carbon blocks, and other carbon-based components used in different industries.
Specification of graphitized petroleum coke
| Carbon | Sulfur | Ash | V.M | Moisture |
| 98.50% | 0.10% | 1.50% | 0.80% | 0.30% |
| 98.50% | 0.05% | 0.35% | 0.30% | 0.30% |

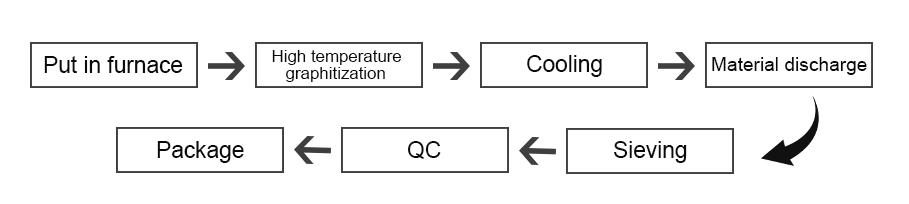

Production line of graphitized petroleum coke
The graphitized petroleum coke (GPC) production line begins with the selection of high-quality raw petroleum coke, followed by a calcination process to remove volatile components. The material is then crushed, sized, and, if necessary, blended to achieve desired properties. The crucial step is graphitization, involving high-temperature heating in the presence of a catalyst to transform carbon into a crystalline structure. After cooling and additional processing for quality enhancement, the final GPC product undergoes rigorous quality control

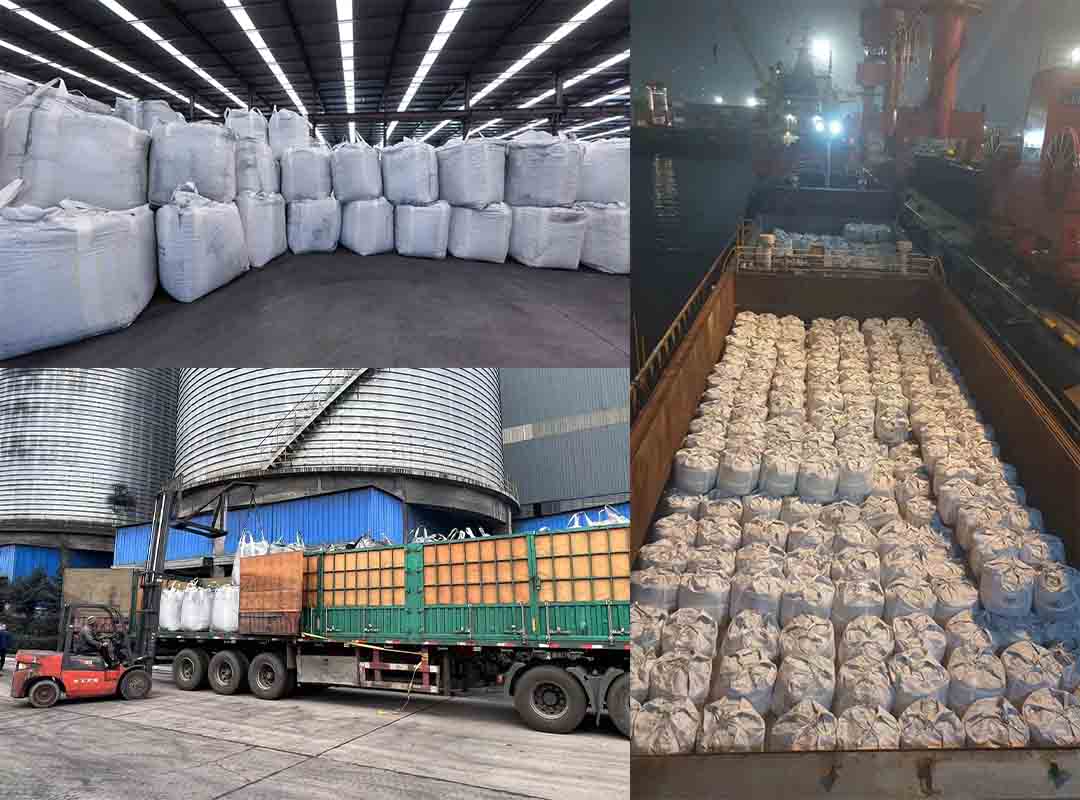

Shipping method
